CLOSE UP AND BEAUTIFUL

TOKINA CINEMA ATX 100MM T2.9 MACRO LENS

The newly designed Tokina Cinema AT-X 100mm T/2.9 macro is a true 35mm, full-frame, 1:1 macro close-up lens. Sporting a new look and design, the lens achieves maximum magnification at a working distance of 11.8 inches (0.3 meters). This allows enough space for lighting, the camera operator, and the subject to work comfortably.

The 100mm macro’s optical design is 4K ready, super sharp, high contrast, and exhibits very low distortion or chromatic aberrations. Focus breathing is incredibly well controlled and the lens has a de-clicked, 9-bladed, curved iris for beautiful bokeh and precise exposure control. The wide T-stop range, from T2.9 to T32, allows for maximum control of exposure and depth-of-field which is critical when working so close to your subject.

SPECIFICATIONS:

Mount PL, Canon EF, Sony E, Nikon F, MFT

Focal Distance 100mm

Optical Structure 8 groups /9 elements

Sensor Size Full Frame 35mm

Minimum Focus Distance 0.3m (11.8 inches)

Maximum Macro Magnification 1:1

Aperture/Iris Blades 9

Depth of Field T2.9 – T32 (F2.8 – F32)

Filter Size 82mm

Overall Length PL Mount: 148mm(from 133mm mount surface)

Canon EF Mount: 146.5mm(from 141mm mount surface)

Sony E mount: 172.2mm(from 167mm mount surface)

Nikon F mount: 143.05mm(from 138.5mm mount surface)

MFT Mount: 170mm (from 165.8mm mount surface)

Diameter of Front Head 85mm

Maximum Diameter 88mm

Weight 1.31kg (46.2 oz.)

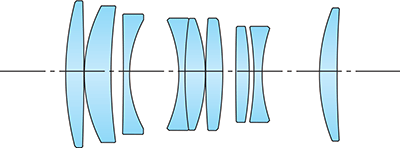

100mm Optical Design.gif


FEATURES:

  • Available in PL, Canon EF, Sony E, Nikon F, and MFT mounts

  • Close Focus 1:1 reproduction at 11.8 inches

  • Fast T2.9 aperture

  • Full frame 35mm format lens

  • Minimized breathing

  • Smooth, de-clicked, 9-bladed, curved iris for beautiful
    out-of-focus areas

  • 4K Image ready

  • Durable, all-metal cine-style housing with geared focus,
    and aperture rings for use in follow-focus systems

  • 82mm filter thread. 85mm front diameter for matte box compatibility
